• Flow performance depends on valve geometry, nominal size, and system pressure, not only on brand or material.
• A full-bore, low-restriction design with compatible interfaces usually improves usable water delivery at the point of attack.
• Installation details such as bends, pipe runs, and coupling mismatch can reduce delivered flow more than the valve body itself.
• For procurement, compare pressure rating, inlet standard, outlet compatibility, and maintenance access together.

Fire hydrant valve design directly affects fire water system performance, and even a small pressure loss can matter when the hose line is under load. NFPA guidance for standpipe systems commonly references a minimum 100 psi, or 6.9 bar, residual pressure at the most remote hose connection for Class I and III systems, which makes low-loss components especially important in tall buildings and large facilities. In that context, the most effective fire hydrant valve design is the one that supports rapid opening, stable discharge, and compatible flow paths, especially when paired with products such as fire hose coupling and adaptor and connector. For buyers comparing options, the real question is how much flow reaches the nozzle after all system losses are counted.

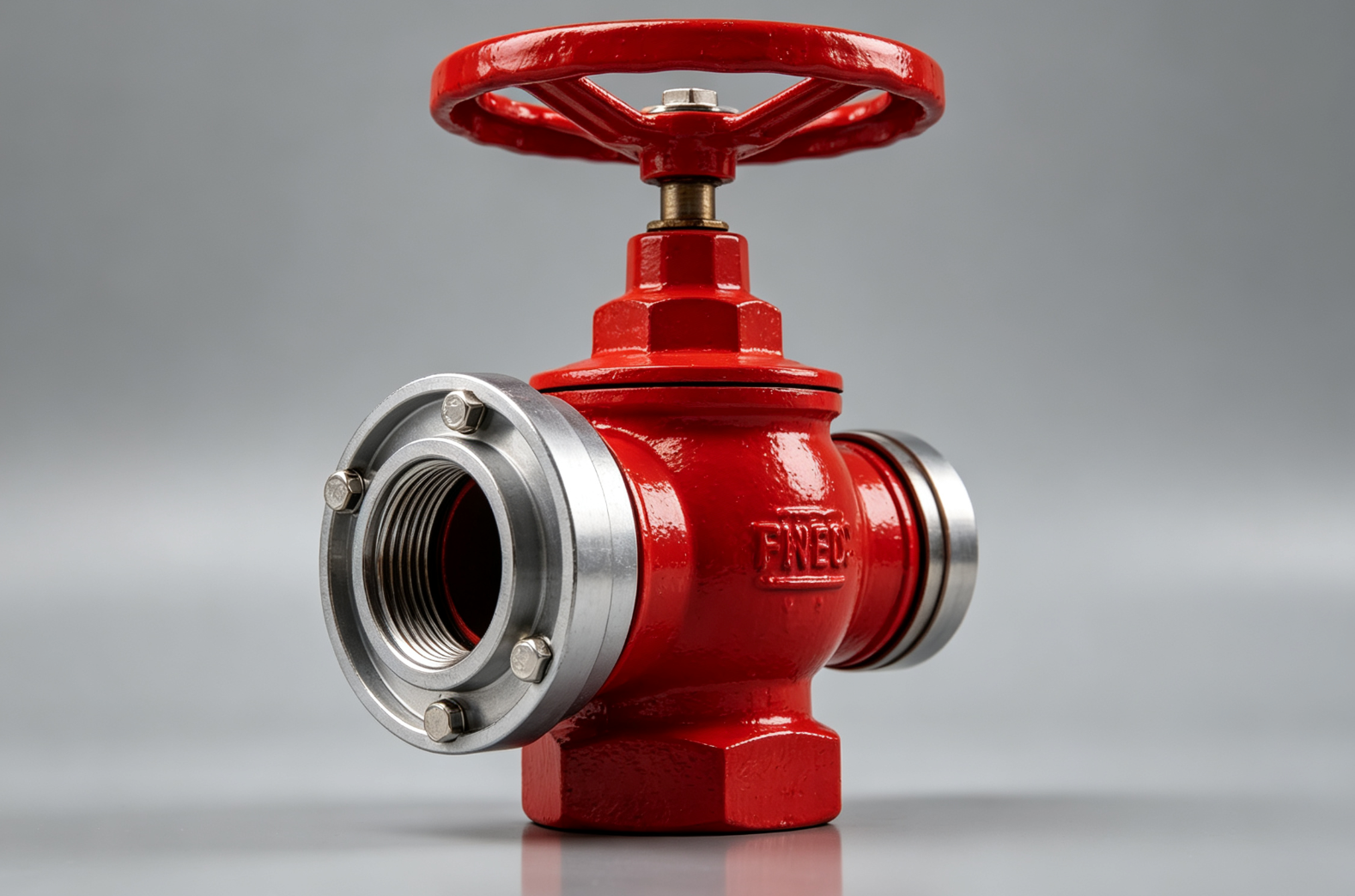

Fire Hydrant Valve Design and Water Flow: What Actually Controls Performance?

The valve body is only one part of the flow equation, but it is often the easiest place to win or lose performance. A fire hydrant valve design that uses a smooth internal passage, proper seat alignment, and a full-opening path typically reduces turbulence and pressure drop compared with narrow or abruptly changing flow passages.

In real projects, the effective flow depends on the entire chain: water source, riser, valve, coupling, hose, nozzle, and operating pressure. A high-quality landing valve is valuable because it sits at the point where firefighters connect under time pressure, so its interface and hydraulic behavior both matter. If the valve is easy to deploy but creates excessive resistance, the system may still fail to deliver enough water at the nozzle.

Which Fire Hydrant Valve Design Is Best for Higher Flow?

The best fire hydrant valve design for higher flow is usually a low-restriction, correctly sized landing valve or hydrant valve with smooth flow transition and standard-compatible connections. This is especially true in buildings where the system must overcome elevation and hose losses before water reaches the fire stream.

For many commercial and high-rise applications, a valve designed for quick access and stable output works better than a more complex design with additional restriction points. A breeching inlet is not a direct substitute for a landing valve, but it becomes critical when an external fire appliance must boost the building’s fire water system. That means the strongest flow outcome comes from matching the right valve to the right job, not choosing one universal type for every scenario.

Standpipe and hose systems are often specified around practical operating pressures rather than theoretical maximums. NFPA 14 is widely used in the United States for standpipe and hose systems, and its remote hose connection pressure requirements help explain why every restriction in the line deserves attention. If a valve, coupling, or adaptor adds unnecessary loss, the downstream stream can weaken even when the pump is adequate.

How Much Flow Can Be Lost by Poor Valve and Coupling Design?

Poor interface design can consume more performance than many buyers expect. A valve with restrictive internals, an undersized coupling, or an incompatible adaptor can create avoidable friction losses, especially when the hose run is long or the elevation is high.

Hydraulic loss is cumulative, which means the system is only as strong as its weakest restriction. In practical terms, a well-matched fire hose coupling and adaptor and connector can preserve more usable pressure than a visually similar but incompatible fitting. For fire service buyers, the lesson is simple: always inspect the entire flow path, not just the valve catalog page.

NFPA 1963 covers fire hose connections, and the standard exists because connection integrity directly affects operational reliability. That makes interface selection a performance decision, not just a purchasing detail. In a building where the fire stream must arrive quickly and at enough pressure to be effective, a few poor fittings can undermine an otherwise sound system.

Fire Hydrant Valve Design Compared: Flow, Access, and Compatibility

Choosing the right fire hydrant valve design requires balancing hydraulic performance with access and code compliance. A pure high-flow design is not automatically the best if it is hard to inspect, slow to operate, or incompatible with local hose standards.

For most B2B buyers, the most flow-efficient fire hydrant valve design is the one that avoids unnecessary transitions. A valve with fewer sharp internal changes, correct thread or flange standardization, and the right nominal bore will usually outperform a “heavier-duty” unit that introduces more resistance.

That is why procurement teams should compare not only pressure rating but also interface standards, serviceability, and local code fit. In export projects, an apparently small choice such as thread standard can determine whether the system delivers the intended flow in the real installation.

What Standards and Numeric Targets Should Buyers Check?

Buyers should check pressure, connection standard, and system compatibility before comparing prices. For standpipe systems, NFPA 14 is the core reference in many projects, and the commonly cited minimum 100 psi, or 6.9 bar, residual pressure at remote hose connections explains why pressure loss control matters so much.

In hydrant and hose interface work, standardized connections reduce uncertainty. When a system uses mismatched threads or mixed couplings, the operator may spend valuable seconds adapting fittings and still lose performance. A correct valve design avoids that problem by aligning with the intended standard from the start.

Fire protection standards are also important for maintenance planning. NFPA 25, which covers inspection, testing, and maintenance of water-based fire protection systems, helps ensure valves continue to open, close, and seal as expected. A design that looks strong on day one but is difficult to test or service can become a long-term risk.

• Check nominal diameter against the required design flow.
• Confirm inlet and outlet standards before ordering.
• Verify operating pressure and residual pressure targets.
• Review inspection access and maintenance frequency.
• Match the valve to the hose, coupling, and nozzle system.

Installation Choices That Improve Water Flow in Real Buildings

Installation quality can improve or destroy hydraulic performance, even when the valve design is good. A short, straight, correctly supported run with minimal elbows usually performs better than a long route with multiple direction changes and undersized fittings.

For high-rise buildings, the relationship between elevation, friction loss, and available discharge is especially important. The fire hydrant valve design should be selected with the full system in mind, including pump capacity, riser sizing, and the interface for emergency boosting. That is where a breeching inlet becomes strategically important, because it allows external fire appliances to feed the system without forcing improvised connections.

Where mixed standards are unavoidable, a carefully specified adaptor can preserve continuity without compromising the line. But each added transition should be treated as a controlled compromise, not a default solution.

Fire Hydrant Valve Design for OEM and Project Buyers

OEM and ODM buyers should evaluate fire hydrant valve design by market fit, not only by catalog specifications. A product intended for one region may need different threads, materials, or marking requirements for another market.

That is especially true when projects span municipal, commercial, marine, and industrial environments. A landing valve used in a hotel may need different documentation and interface expectations than one used in a plant or export project. For broader system integration, product families such as landing valve and adaptor and connector should be assessed as part of a complete flow chain rather than as isolated items.

A useful procurement rule is to ask four questions: Will it fit, will it seal, will it open quickly, and will it still deliver the required flow after maintenance cycles? If the answer is yes to all four, the design is usually strong enough for real-world use.

Selection Guide: Which Fire Hydrant Valve Design Fits Which Scenario?

The right design depends on where the system is used and how the operator will access it during an emergency. A single building can require multiple components with different roles, and that is normal rather than redundant.

1. Use a landing valve where firefighters need fast, direct hose connection inside the building.
2. Use a breeching inlet where external pumping support is needed for tall or complex facilities.
3. Use a compatible coupling and adaptor when standard conversion is unavoidable.
4. Prioritize low-loss geometry when the building has long risers or limited pump head.
5. Plan for inspection and replacement access from the beginning.

Flow Performance Checklist for Fire Hydrant Valve Design

This checklist helps buyers compare products in a technical, decision-ready way. It reduces the risk of choosing a valve that looks compliant but performs poorly in the field.

The best fire hydrant valve design is the one that supports the full system, not just the valve itself. It should help preserve pressure, simplify operation, and maintain compatibility across the entire hose line.

Common Mistakes When Choosing a Fire Hydrant Valve

One of the most common mistakes is selecting by catalog pressure rating alone. A high-rated valve still performs poorly if the internal passage is restrictive or the mating fittings are mismatched.

Another mistake is ignoring maintenance access. A valve that is difficult to inspect can lose sealing quality over time, and small losses can become operational problems during an emergency. Buyers should also avoid mixing standards casually, because thread mismatch is a frequent source of delay and leakage.

• Do not assume larger metal body means better flow.
• Do not mix standards without a documented adaptor strategy.
• Do not ignore pressure loss across couplings and hose runs.
• Do not overlook inspection and testing access.

Conclusion: The Best Design Is the One That Preserves Flow End to End

The fire hydrant valve design that helps improve water flow most is the one that minimizes restriction, matches the system standard, and supports fast, reliable connection under emergency conditions. In most buildings, that means a properly sized landing valve with compatible couplings and a clean hydraulic path; in higher or externally supplied systems, a correctly planned breeching inlet becomes equally important.

For buyers, the decision should be based on total system behavior rather than isolated component claims. If the valve opens quickly, seals well, matches the hose standard, and keeps residual pressure within the required range, it is likely the right design for real-world fire protection.

FAQ

1. Which fire hydrant valve design gives the highest water flow?

A full-bore, low-restriction design usually gives the highest usable flow, provided the system pressure and hose interfaces are correctly matched.

2. Is a landing valve better than a standard hydrant valve?

A landing valve is often better for fast firefighter access inside buildings, but the best choice depends on the system layout and required discharge.

3. Does a breeching inlet improve water flow?

Yes, when it is correctly designed and installed, a breeching inlet can help external fire appliances supply the system more effectively.

4. Why do couplings affect flow?

Because poor coupling fit, leakage, or restrictive geometry can add friction loss and reduce the pressure available at the nozzle.

5. What pressure should standpipe hose connections maintain?

NFPA 14 commonly references 100 psi, or 6.9 bar, residual pressure at the remote hose connection for Class I and III systems.

6. How can I compare two fire hydrant valve designs?

Compare nominal size, connection standard, pressure rating, internal passage, maintenance access, and compatibility with the hose system.

7. What standards should be checked before purchase?

Common references include NFPA 14 for standpipe systems, NFPA 25 for inspection and testing, and NFPA 1963 for fire hose connections.

For deeper technical reference, see NFPA 14, NFPA 25, NFPA 1963, and the U.S. Fire Administration overview on fire protection systems.
