Landing valves and regulator valves serve distinct purposes in fluid control systems. A landing valve, such as a fire landing valve, provides quick access to water supplies, while a pressure reducing regulator valve ensures consistent pressure levels. Additionally, a 3 way landing valve offers versatile connections for various piping configurations. Understanding these differences is essential for selecting the right valve for specific applications.

Definition of Landing Valve

A landing valve is a critical component in fire protection systems, primarily designed to provide quick access to water supplies. These valves allow firefighters to connect hoses directly to a water source, ensuring rapid deployment during emergencies. The design of landing valves emphasizes durability and reliability, as they must withstand high pressures and harsh environmental conditions.

Key Features of Landing Valves

Landing valves possess several essential features that enhance their functionality:

• Durability: Constructed from robust materials, landing valves resist corrosion and damage, ensuring long-term performance.
• Safety Features: Many landing valves include pressure relief or non-return mechanisms, which enhance user safety during operation.
• Compliance with Standards: These valves are designed according to industry standards, such as BS 5041-1 and BS 5154, ensuring they meet safety and performance criteria.

Components and Design

The main components of a landing valve include an inlet for water supply, a control chamber for pressure regulation, and an outlet for distributing water to hoses or sprinkler heads. The following table outlines the various types of landing valves and their specifications:

Landing valves typically operate under high pressure, with ratings reaching up to 20 bar. They can deliver flow rates of at least 1400 liters per minute, making them suitable for commercial buildings and emergency response scenarios. The pressure regulating landing valves function by allowing water to flow through a series of chambers, springs, and diaphragms that adjust the water pressure automatically. This ensures a consistent pressure output, which is crucial for the effective operation of fire suppression systems.

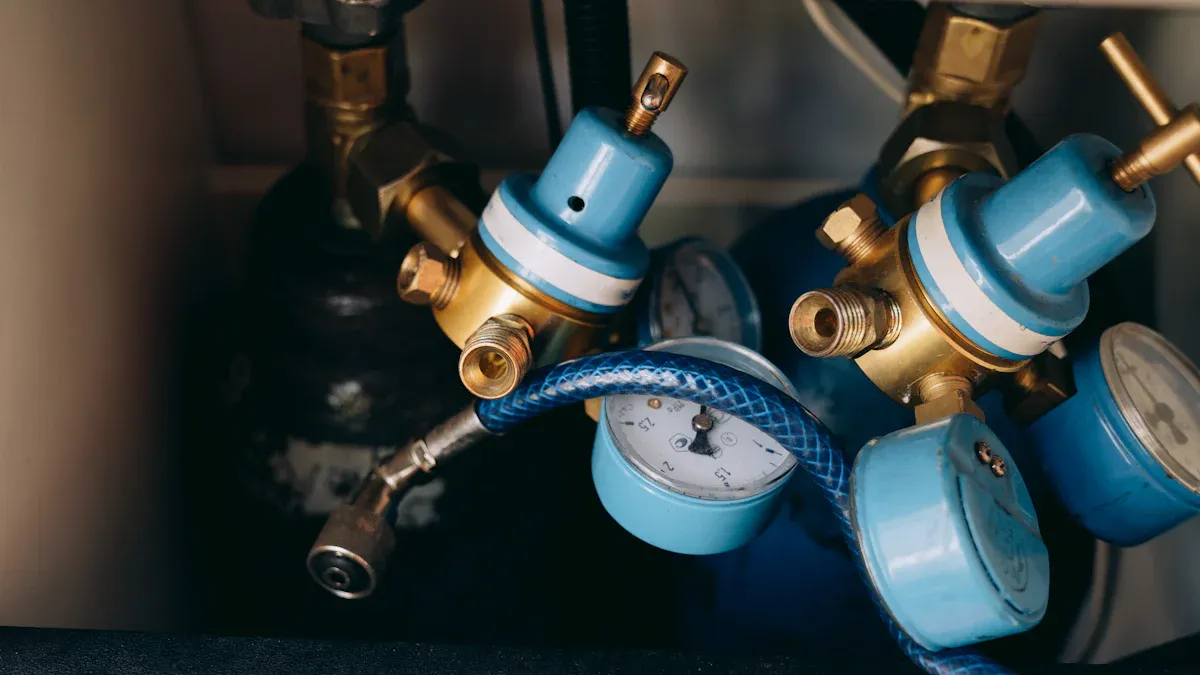

Definition of Regulator Valve

A regulator valve plays a vital role in fluid and gas control systems. These valves maintain desired pressure levels by modulating flow through adjustments in the valve opening. In industrial applications, regulator valves ensure that systems operate within safe pressure limits, preventing damage from excessive pressure. This functionality is crucial for safeguarding equipment and optimizing performance.

Key Functions of Regulator Valves

Regulator valves perform several essential functions:

• Pressure Control: They regulate the pressure of fluids or gases, ensuring stability in the system.
• Flow Modulation: By adjusting the valve opening, they control the flow rate, which is critical in applications requiring precise pressure management.
• System Protection: These valves prevent damage caused by pressure fluctuations, enhancing the longevity of equipment.

Standard Pressure and Flow Control Ranges

The following table outlines the standard pressure and flow control ranges for regulator valves in water supply systems:

Mechanisms of Regulator Valves

Regulator valves maintain consistent output pressure through several key components:

• Sensing Element: Detects system pressure and monitors output pressure.
• Loading Element: Applies force to the pressure-reducing valve, adjusting flow to maintain the desired output pressure.
• Pressure-Reducing Valve: The core component that reduces inlet pressure to a stable outlet pressure, adjusting as needed.

Key Differences Between Landing Valve and Regulator Valve

Landing valves and regulator valves serve different functions in fluid control systems. Understanding their distinctions is crucial for selecting the appropriate valve for specific applications. Here are the primary differences:

1. Functionality:

   • Landing Valves: These valves provide direct access to water supplies, primarily for firefighting. They allow firefighters to connect hoses quickly and efficiently.
   • Regulator Valves: These valves maintain consistent pressure levels in fluid systems. They adjust flow to ensure that pressure remains within safe limits.

2. Design Purpose:

   • Landing Valves: Designed for high-pressure environments, landing valves must withstand extreme conditions. Their construction focuses on durability and reliability.
   • Regulator Valves: These valves focus on pressure control. They modulate flow to prevent pressure spikes, protecting equipment from damage.

3. Applications:

   • Landing Valves: Commonly used in fire protection systems, landing valves are essential for emergency response. They ensure rapid access to water during firefighting operations.
   • Regulator Valves: Found in various industrial applications, regulator valves are crucial for maintaining safe operating conditions. They are used in gas and liquid systems to ensure stable pressure.

4. Operational Mechanism:

   • Landing Valves: Operate by allowing water to flow directly from the source to the hoses. They typically feature a straightforward opening mechanism.
   • Regulator Valves: Utilize a sensing element to monitor pressure. They adjust the valve opening based on the detected pressure, ensuring a consistent output.

5. Maintenance Requirements:

   • Landing Valves: Require regular inspections to ensure functionality. Maintenance focuses on checking for leaks and ensuring the valve opens and closes properly.
   • Regulator Valves: Also need routine checks, particularly for the sensing and loading elements. Proper maintenance ensures accurate pressure regulation.

Practical Applications of Landing Valves

Landing valves play a crucial role in fire protection systems. Their primary function is to provide reliable access to water during firefighting operations. This access supports firefighters in their efforts to control and extinguish fires effectively. The design of landing valves ensures that they can withstand high pressures, making them suitable for emergency situations.

Key practical applications of landing valves include:

• Reliable Water Flow: Landing valves support consistent water flow, which is essential during firefighting. They prevent leaks, ensuring that the system functions effectively.
• Quick Access: These valves help firefighters access water quickly and safely. This rapid access can make a significant difference in emergency response times.
• Organization and Protection: Landing valves protect and organize hoses, enhancing the efficiency of emergency operations. Proper organization allows firefighters to focus on their tasks without worrying about equipment malfunctions.

In addition to these applications, landing valves are often installed in strategic locations within buildings. This placement ensures that firefighters can reach them easily during emergencies. Their robust construction and reliable performance make them indispensable in fire safety protocols.

Overall, landing valves are vital components in fire protection systems. They ensure that firefighters have the necessary resources to combat fires effectively and efficiently.

Practical Applications of Regulator Valves

Regulator valves find extensive use in various industries due to their ability to maintain stable pressure levels. These valves play a crucial role in ensuring efficient operation across multiple applications. Here are some key practical applications:

• Municipal Water Supply Networks: Regulator valves help manage water pressure in municipal systems. They ensure that residents receive consistent water pressure, which is vital for daily activities.

• Industrial Process Control: In manufacturing, regulator valves optimize pressure for different processes. They contribute to energy efficiency by minimizing energy consumption and reducing operating costs. This leads to sustainable process management.

• Gas Distribution Systems: Regulator valves control gas pressure in distribution networks. They ensure safe delivery of gas to homes and businesses, preventing pressure fluctuations that could lead to dangerous situations.

• Irrigation Systems: In agriculture, these valves regulate water pressure in irrigation systems. They ensure that crops receive the right amount of water, promoting healthy growth and efficient water use.

The following table outlines various techniques for pressure control in municipal water supply networks, highlighting their advantages and disadvantages:

Regulator valves are essential for maintaining safety and efficiency in various systems. Their ability to adapt to changing conditions makes them invaluable in modern infrastructure.

When to Use a Landing Valve

Landing valves are crucial in specific situations, particularly in fire protection and emergency response scenarios. Here are some key instances when their use becomes essential:

• Fire Emergencies: During a fire, quick access to water is vital. Landing valves allow firefighters to connect hoses directly to a water supply, enabling rapid response.

• High-Rise Buildings: In tall structures, landing valves provide strategic access points for firefighters. They ensure that water reaches upper floors efficiently.

• Commercial Properties: Businesses often require reliable fire protection systems. Installing landing valves ensures that emergency services can access water quickly during a crisis.

• Public Spaces: Parks, stadiums, and other public areas benefit from landing valves. These valves provide essential water access for firefighting efforts in crowded locations.

Tip: Regular maintenance of landing valves is crucial. Ensure that they remain operational and accessible at all times. This practice enhances safety and preparedness.

When to Use a Regulator Valve

Regulator valves are essential in various scenarios where maintaining stable pressure is critical. Their use is particularly beneficial in the following situations:

• Industrial Applications: In manufacturing processes, regulator valves ensure that systems operate within safe pressure limits. This prevents equipment damage and enhances operational efficiency.

• Municipal Water Systems: These valves help manage water pressure in municipal supply networks. They guarantee that residents receive consistent pressure for daily activities.

• Gas Distribution: Regulator valves control gas pressure in distribution systems. They ensure safe delivery to homes and businesses, preventing dangerous pressure fluctuations.

• Irrigation Systems: In agriculture, these valves regulate water pressure, ensuring crops receive the right amount of water for optimal growth.

When selecting a regulator valve for a specific application, several factors must be considered. The table below outlines key considerations:

By carefully assessing these factors, users can select the most suitable regulator valve for their needs, ensuring optimal performance and safety in their systems.

In summary, landing valves and regulator valves serve distinct roles in fluid control systems. Landing valves provide direct access to water for firefighting, while regulator valves maintain stable pressure in various applications. Selecting the appropriate valve is crucial for ensuring system safety and efficiency.

Choosing the right valve enhances operational effectiveness and safeguards against potential hazards.

FAQ

What is the primary purpose of a landing valve?

Landing valves provide quick access to water supplies for firefighting operations.

How does a regulator valve maintain pressure?

Regulator valves adjust flow to keep pressure levels stable in fluid systems.

When should I choose a landing valve over a regulator valve?

Select a landing valve for firefighting needs and a regulator valve for pressure control in industrial applications.
