Fire hose nozzles play a critical role in effective firefighting. Their design directly influences water distribution and overall firefighting performance. Different nozzle types, such as the fire hose reel with nozzle and the Spray Jet Fire Hose Nozzle, address various needs in combating fires. Understanding these features helps firefighters make informed decisions in high-pressure situations, particularly when utilizing the spray jet fire hose nozzle for optimal water flow.
Types of Fire Hose Nozzles
Fire hose nozzles come in various types, each designed to meet specific firefighting needs. Understanding these types helps firefighters choose the right nozzle for different situations.
Smooth-Bore Nozzles
Smooth-bore nozzles deliver a solid stream of water, which allows for maximum reach and penetration. They are particularly effective in targeting fires in challenging areas, such as basements or tight spaces. The design of smooth-bore nozzles is simple, with no internal parts, which enhances their durability.
| Feature | Smooth-Bore Nozzles | Other Nozzle Types |
|---|---|---|
| Stream Type | Solid stream | Adjustable spray patterns |
| Reach | Maximum reach and penetration | Varies, generally less than smooth-bore |
| Internal Complexity | Simple design, no internal parts | May have internal mechanisms for control |
| Heat Absorption | Less effective | More effective due to broken patterns |
| Use Case | Effective for targeting fires in tight areas | General firefighting applications |
Smooth-bore nozzles maintain a tight stream, which is beneficial for pushing water directly to the seat of fires. However, they do not absorb heat as quickly as nozzles with broken patterns, requiring manual adjustment to optimize effectiveness.
Constant Gallonage Nozzles
Constant gallonage nozzles operate at various pressures, such as 50, 70, or 100 psi, while maintaining a consistent flow rate. This feature allows them to discharge water at a predetermined rate, regardless of pressure changes.
| Nozzle Pressure (psi) | Flow Rate (gpm) |
|---|---|
| 50 | 150 |
| 75 | 150 |
| 100 | 150 |
| 50 | 160 |
| 50 | 175 |
| 75 | 175 |
| 100 | 175 |
| 75 | 185 |
| 75 | 200 |
| 50 | 250 |
| 75 | 250 |
| 75 | 275 |
| 75 | 300 |
| 100 | 325 |
| 100 | 350 |
These nozzles are economical and provide reliable performance, making them suitable for various firefighting scenarios.
Automatic Spray Nozzles
Automatic spray nozzles adjust the flow rate based on water supply pressure. They are particularly useful in urban firefighting, where water pressure can fluctuate. These nozzles can switch up to 10,000 times per minute, allowing for precise control over the flow rate.
- Automatic nozzles adapt to varying water supply conditions.
- They are ideal for firefighting teams that require consistent performance.

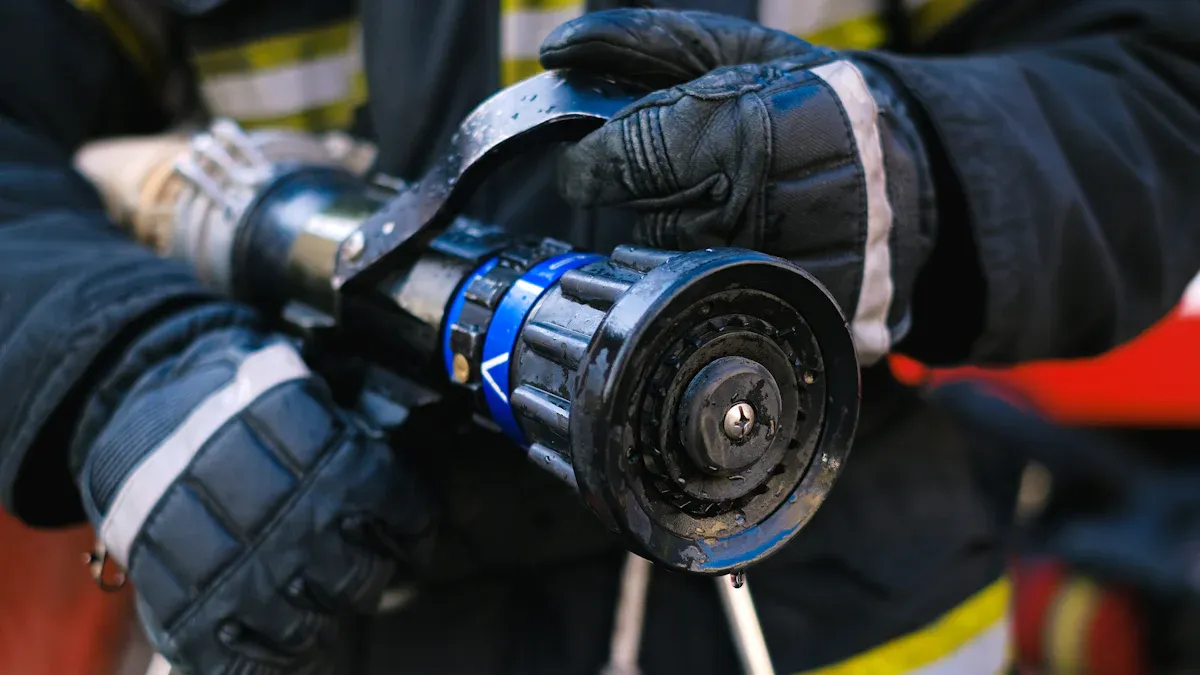

Combination Nozzles
Combination nozzles offer flexibility by allowing users to switch between a solid stream and a fog pattern. This adaptability makes them suitable for various fire scenarios.
- Combination nozzles enable switching between different spray patterns.
- They effectively control the intensity of the fire, making them versatile tools in firefighting.
Fire Hose Reel Nozzle
The fire hose reel nozzle is designed for rapid deployment in emergencies. Its compact design reduces tripping hazards, making it safer to use in crowded areas.
| Design Feature | Benefit |
|---|---|
| Compact Design | Reduces tripping hazards and obstructions in tight spaces, enhancing safety in crowded areas. |
| High-Pressure Performance | Delivers a powerful water stream for effective firefighting, allowing rapid response in emergencies. |
| User-Friendly Features | Ensures intuitive use, making the hose readily available when needed for quick deployment. |
Fire hose reel nozzles are commonly found in commercial buildings, industrial sites, and residential areas, ensuring safety and quick access during emergencies.
Key Features of Each Type
Flow Rate
Flow rate is a critical feature of fire hose nozzles, as it determines the volume of water delivered over time. Different nozzle types exhibit varying flow rates, which significantly impact firefighting effectiveness.
- Smooth-bore nozzles typically provide higher flow rates, making them suitable for direct attacks on fires. For example, a smooth-bore nozzle with a 1 1/4″ opening can achieve a flow rate of 328 gallons per minute (gpm) at 75 psi.
- Combination nozzles offer versatility, allowing users to switch between different flow rates. They can deliver flow rates ranging from 150 gpm at 100 psi to 275 gpm at 75 psi.
The table below summarizes the average flow rates for various nozzle types:
| Nozzle Type | Flow Rate (gpm) at Pressure (psi) |
|---|---|
| Smooth-bore 7/8″ | 161 gpm at 40 psi |
| Smooth-bore 15/16″ | 185 gpm at 50 psi |
| Smooth-bore 1″ | 210 gpm at 60 psi |
| Smooth-bore 1 1/8″ | 266 gpm at 75 psi |
| Smooth-bore 1 1/4″ | 328 gpm at 75 psi |
| Combination/Fog | 150 gpm at 100 psi |
| Combination/Fog | 160 gpm at 50 psi |
| Combination/Fog | 185 gpm at 50 psi |
| Combination/Fog | 200 gpm at 75 psi |
| Combination/Fog | 250 gpm at 50 psi |
| Combination/Fog | 275 gpm at 75 psi |
The effectiveness of fire suppression is influenced by the flow rate of water and the type of nozzle used. Different nozzles produce varying droplet sizes, which significantly affect extinguishing efficiency. Smaller droplets are generally more effective for certain types of fires, while larger droplets may be better for others.
Spray Pattern
The spray pattern of a nozzle plays a vital role in firefighting operations. Different patterns can impact how effectively firefighters can control a blaze.
- Fog patterns expel a cone-shaped stream of small water droplets. This pattern helps convert droplets into steam, effectively removing hot air from a room and cooling the environment.
- Straight streams discharge water in a column shape. This pattern offers greater reach but is less effective for ventilation and heat absorption.
The following table outlines the impact of various spray patterns on firefighting outcomes:
| Spray Pattern | Description | Impact on Firefighting Outcomes |
|---|---|---|
| Fog | Expels a cone-shaped stream of small water droplets. | Helps convert droplets into steam, removing hot air from a room. |
| Straight Stream | Discharges water in a column shape. | Offers greater reach but is less effective for ventilation and heat absorption. |
Adjustable nozzles provide the ability to control both the spray pattern and flow rate. This adaptability is crucial for meeting varying project needs, thereby improving efficiency and precision in application.
Material and Durability
The materials used in the construction of fire hose nozzles significantly affect their durability and long-term performance. Common materials include:
- Polycarbonate
- Aluminum (hardcoat anodized)
- Lightweight alloys
- Brass
- Chrome-plated brass
Metal nozzles, such as brass and aluminum, are durable and can withstand significant wear and tear, high water pressure, and impacts. In contrast, plastic nozzles are lighter and more affordable but may become brittle over time, especially if made from lower-quality materials. Hybrid designs combine metal and plastic to enhance durability while maintaining comfort and usability.
The durability of nozzle materials affects long-term performance and safety. Metal nozzles can endure harsh conditions, while plastic options may require more frequent replacement.
Fire hose reel nozzles, designed for rapid deployment, often utilize durable materials to ensure reliability during emergencies. Their compact design enhances safety in crowded areas, making them a preferred choice in various settings.
Applications and Limitations
Residential Use
In residential settings, fire hose nozzles serve essential functions. They provide homeowners with the ability to combat small fires effectively. However, certain limitations exist. For instance, automatic nozzles may not always outperform conventional ones. Their effectiveness can depend on specific conditions. Additionally, high-pressure nozzles can be challenging to control, making them less suitable for some residential fire scenarios. There is no all-purpose nozzle that can handle every fire situation, indicating a limitation in versatility.
Commercial Use
Fire hose nozzles play a vital role in commercial firefighting operations. Selecting the right nozzle involves several considerations:
| Consideration | Description |
|---|---|
| Hose Diameter | The size of the hoseline is crucial; larger hoses are needed for bigger fires (e.g., 2½-inch vs. 1¾-inch). |
| Nozzle Type | Selection varies based on department resources and culture; smoothbore vs. fog nozzles are common. |
| Fire Flow Calculation | Determined using formulas like NFA or Iowa to assess the required flow based on fire size. |
| Operational Scenarios | Factors such as standpipe use and building entry points influence nozzle selection. |
| Stream Patterns | Fog nozzles can create various stream shapes, while smoothbore nozzles provide a solid stream. |
Commercial buildings often present unique challenges. Higher flow rates are necessary due to increased fuel loads. The physical challenges of maneuvering hoses in large spaces can complicate fire suppression efforts. Careful nozzle selection is critical to effectively combat fires in these environments.
Industrial Use
In industrial settings, fire hose nozzles must meet rigorous demands. Selectable gallonage nozzles allow manual selection of flow without shutting down. Automatic nozzles maintain constant pressure over varying flows, optimizing stream performance. Multi-purpose nozzles combine smooth bore and fog capabilities, suitable for various applications.
However, operational limitations exist. Pressure management is critical for effective nozzle operation. Flow control is essential for directing water streams. Durability is necessary to withstand harsh industrial conditions. Friction loss in hoselines limits the effective working length, impacting firefighting efforts.
Selecting the right fire hose nozzle is vital for effective firefighting. Firefighters should consider factors such as nozzle type, intended application, and desired flow rate. Proper nozzle choice enhances safety and efficiency in fire response.
Remember:
- Evaluate personnel availability and required patterns.
- Test nozzles to verify actual flow rates for effective operations.
- Ensure compatibility with hoses to avoid performance issues.
By understanding these elements, firefighters can improve their response strategies and outcomes.
FAQ
What is the best type of fire hose nozzle for residential use?
Combination nozzles are ideal for residential use due to their versatility in handling various fire scenarios.
How often should fire hose nozzles be inspected?
Fire hose nozzles should undergo inspection at least once a year to ensure proper functionality and safety.
Can I use a smooth-bore nozzle for all types of fires?
Smooth-bore nozzles excel in direct attacks but may not be suitable for all fire types, especially those requiring cooling or ventilation.
