• Regular testing keeps the 3-Way Water Divider ready for emergencies.
• Technicians inspect the dividing breeching and confirm the fire water landing valve operates without leaks.
• Routine care for the 3 Way Water Divider supports safety and extends equipment life.

Essential Pre-Test Checks for 3-Way Water Divider

Visual Inspection and Cleaning

Technicians begin by examining the 3-Way Water Divider for any visible signs of contamination or damage. They look for sudden changes in water color or unusual smells, such as a rotten egg odor, which may point to hydrogen sulfide or iron bacteria. Green corrosion on pipes, visible leaks, or rust stains can signal underlying issues. Discoloration or buildup inside the tank may also indicate water quality problems.

Tip: Regular cleaning removes debris that could affect the separation process and ensures smooth operation.

Verifying System Integrity

Before testing, technicians verify the structural integrity of the 3-Way Water Divider. They use several methods to check for leaks and weaknesses:

• Hydrostatic Pressure Test: The system is sealed and pressurized to 150 psig for 15 minutes while observing for leaks.
• Cyclic Pressure Test: The divider undergoes 10,000 cycles of pressure from 0 to 50 psig, with periodic leak checks.
• Burst Pressure Test: The pressure is rapidly increased to 500 psig to check for integrity, then released.

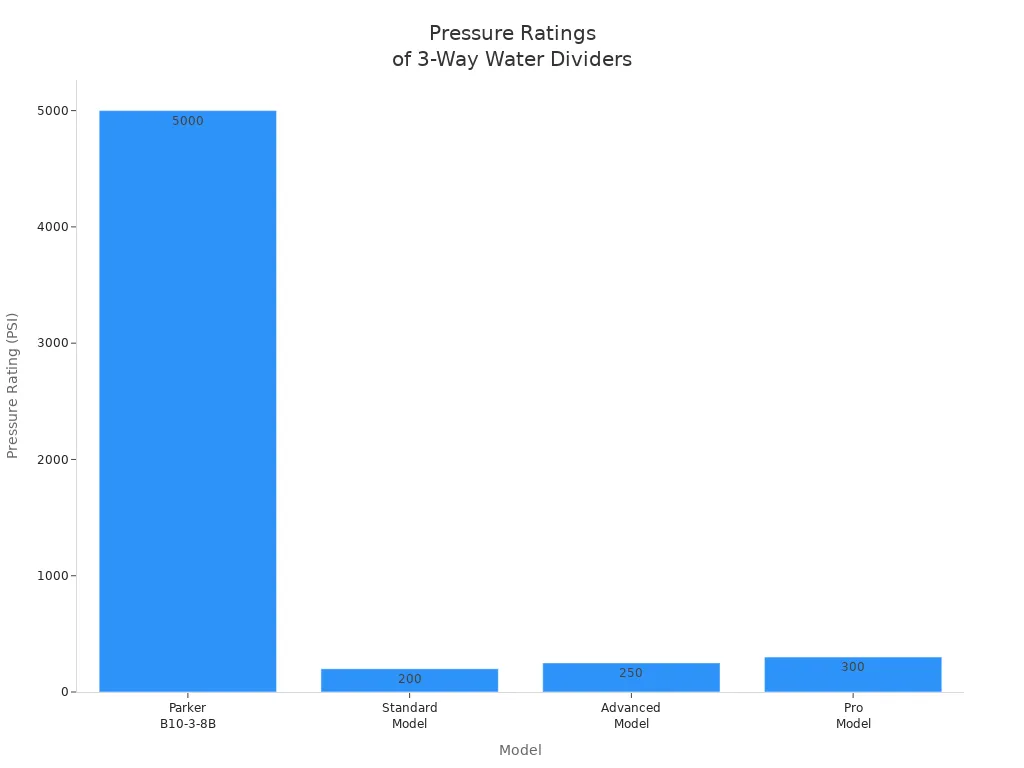

Industry standards require different pressure ratings for various models. The chart below compares the pressure ratings of four common models:

Confirming Connections and Seals

Secure connections and tight seals are vital for safe operation. Technicians inspect all valves, instruments, pipelines, and accessories for leaks or loose fittings. They ensure that all switches operate smoothly and that automation systems function reliably. The table below summarizes the recommended pre-test checks:

Testing and Maintenance Procedures for 3-Way Water Divider

Operational Flow Test

Technicians start by performing an operational flow test. This test checks if water flows evenly through all outlets of the 3-Way Water Divider. They connect the divider to a water source and open each valve one at a time. Each outlet should deliver a steady stream without sudden drops or surges. If the flow appears weak or uneven, technicians inspect for blockages or internal buildup.

Tip: Always monitor the pressure gauge during this test to ensure the system stays within safe operating limits.

Leak Detection and Pressure Check

Leak detection protects both equipment and personnel. Technicians pressurize the system and inspect all joints, valves, and seals for signs of moisture or drips. They use soapy water to spot small leaks, watching for bubbles at connection points. Pressure checks confirm that the 3-Way Water Divider holds steady under normal and peak loads. If the pressure drops unexpectedly, this may signal a hidden leak or faulty seal.

Performance Verification

Performance verification ensures the divider meets operational standards. Technicians compare actual flow rates and pressures to manufacturer specifications. They use calibrated gauges and flow meters for accurate readings. If the divider fails to meet these standards, they document the results and schedule corrective maintenance.
A simple table helps track performance:

Lubrication and Moving Parts Care

Proper lubrication keeps moving parts in good condition. Technicians apply approved lubricants to valve stems, handles, and seals. They avoid over-lubrication, which can attract dust and debris. Regular care prevents sticking and reduces wear.

Note: Always use lubricants recommended by the manufacturer to avoid damaging seals or gaskets.

Calibration and Adjustment

Calibration maintains the accuracy and safety of the 3-Way Water Divider. Technicians follow a step-by-step process to adjust each valve:

1. Remove the cylindrical plug with washer from the 1/8″ BSP port at the valve.
2. Attach a pressure gauge to the port.
3. Plug the outlet of the element being adjusted, leaving other outlets open.
4. Start the pump.
5. Adjust the valve until the gauge reads 20-30 bar above the maximum use pressure, but below the relief valve setting.
6. Remove the gauge and replace the end cap.

They repeat these steps for each valve. This process ensures each outlet operates within safe pressure limits.

Replacing Worn or Damaged Components

Replacing damaged parts keeps the 3-Way Water Divider reliable. Technicians follow strict safety protocols:

1. Turn off the engine and let it cool before starting.
2. Wear gloves and safety glasses for protection.
3. Shut off the fuel supply with a valve or clamp to prevent leaks.
4. Use a container to catch any spilled fuel.
5. Mount new parts securely, avoiding direct installation on the hull.
6. Apply marine-grade sealant to prevent water leaks.
7. After installation, check for leaks before restarting the engine.
8. Maintain and replace filters regularly for best performance.

Safety Alert: Never skip personal protective equipment or leak checks during part replacement.

Troubleshooting and Documentation for 3-Way Water Divider

Troubleshooting Common Issues

Technicians often encounter issues such as uneven water flow, pressure drops, or unexpected leaks in a 3-Way Water Divider. They begin troubleshooting by checking for obvious signs of wear or damage. If the problem persists, they use diagnostic tools to identify hidden faults. Modern facilities now use advanced methods to detect failures early.

A novel fault detection and diagnostic methodology for TPS is proposed in this study. It can give an early warning of a failure in the system and has an ability to be easily adapted for the specific system. The methodology was built using the Bayesian Belief Network (BBN) technique, which allows for graphical representation, inclusion of expert knowledge, and probabilistic modeling of uncertainties.

Technicians rely on sensor data to monitor flow and pressure. When readings do not match expected values, they use the BBN model to trace the source of the problem. This approach helps link sensor inconsistencies to specific failure modes.

The BBN models the propagation of oil, water and gas through the different sections of the separator and the interactions between component failure modes and process variables, such as level or flow monitored by sensors installed on the separator. The results indicated that the fault detection and diagnostics model was able to detect inconsistencies in sensor readings and link them to corresponding failure modes when single or multiple failures were present in the separator.

Recording Maintenance Activities

Accurate documentation supports long-term reliability. Technicians record each inspection, test, and repair in a maintenance log. They include the date, actions taken, and any parts replaced. This record helps track performance trends and plan future maintenance.

A simple maintenance log might look like this:

Tip: Consistent record-keeping ensures the 3-Way Water Divider stays ready for emergencies and meets safety standards.

• Regular inspection, testing, and maintenance keep the 3-Way Water Divider ready for use.
• Technicians address problems quickly to prevent failures.
• A checklist helps ensure every step gets completed.

Tip: Consistent care extends equipment life and supports safety in every operation.

FAQ

How often should technicians test a 3-Way Water Divider?

Technicians test the divider every six months. Regular checks help maintain safety and ensure reliable operation.

What signs show a 3-Way Water Divider needs maintenance?

Technicians look for leaks, uneven water flow, or unusual noises. These signs indicate the divider needs immediate attention.

Which lubricant works best for moving parts?

Technicians use manufacturer-approved lubricants. A table below shows common options:
