Fire hydrant landing valves play a key role in stopping fire system breakdowns. Studies show closed valves or water flow issues cause most failures. A flange landing valve supports steady water delivery. The flanged hydrant landing valve, especially a landing valve with adaptor, helps keep fire protection reliable during emergencies.
Flange Landing Valve: What It Is and Why It Matters
Definition and Key Features

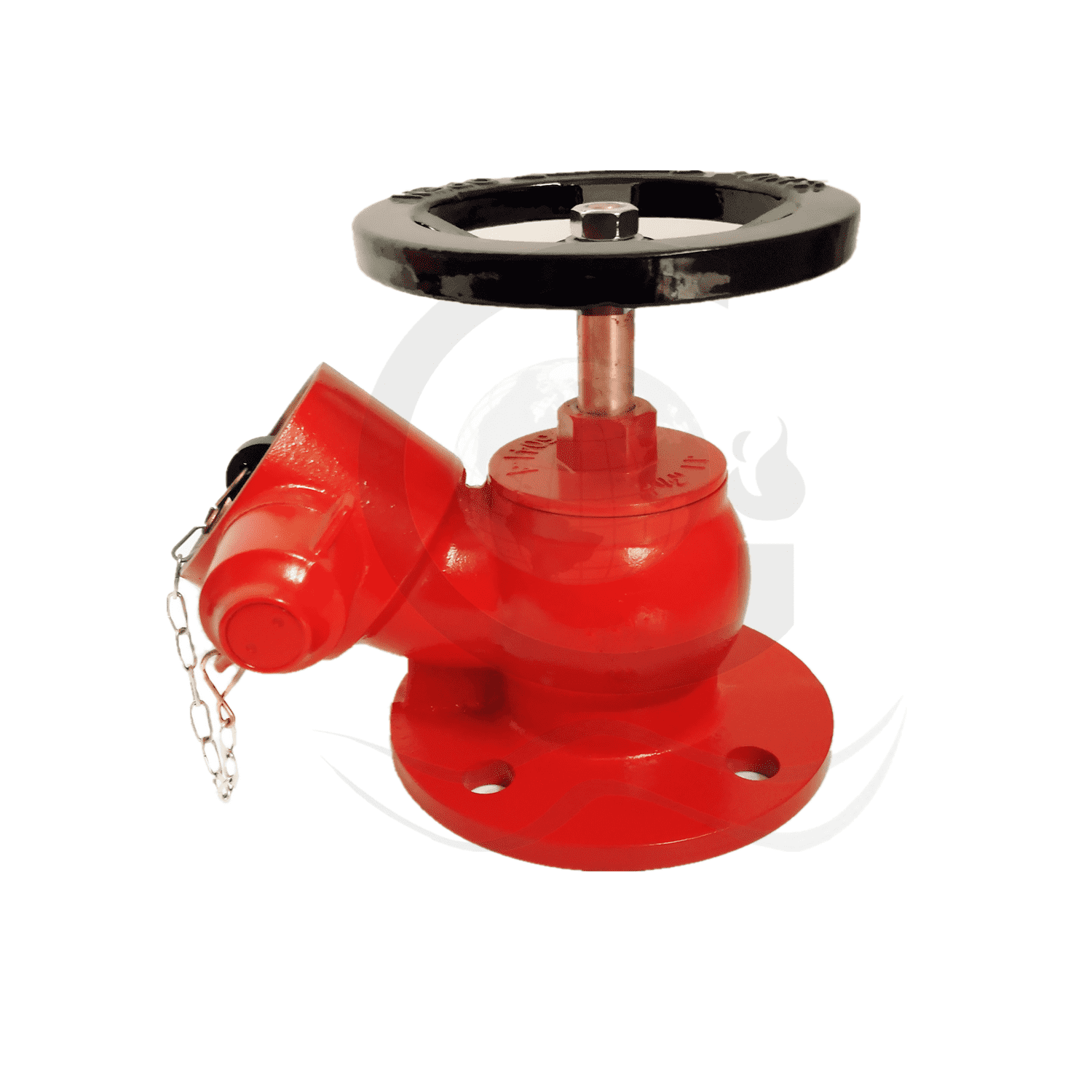

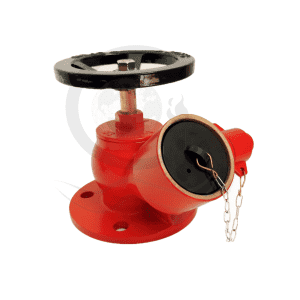

A flange landing valve is a specialized hydrant valve used in fire protection systems. It features a globe pattern and an oblique design, which helps control water flow during emergencies. Manufacturers build this valve from brass, making it strong and resistant to corrosion. The flange landing valve connects to fire hydrant systems using a 2.5-inch flange inlet and a 2.5-inch BS 336 outlet. It can handle working pressures up to 16 bars and passes strict tests for safety and reliability.
The flange landing valve meets international standards, including BS 5041 Part 1 and BS 336:2010. These standards ensure the valve performs well in critical situations.
| Component / Feature | Description / Specification |
|---|---|
| Valve Type | Globe pattern hydrant valve, oblique design |
| Inlet | 2.5” flange (flanged or screwed inlet available) |
| Outlet | 2.5” BS 336 standard |
| Material | Brass |
| Working Pressure | Suitable for nominal inlet pressures up to 15 bars; working pressure 16 bar |
| Test Pressure | Valve seat tested at 16.5 bar; body tested at 22.5 bar |
| Standards Compliance | BS 5041 Part 1 (valve), BS 336:2010 (hose connection and blank cap) |
| Flow Rate | 8.5 L/s at 4 bar outlet pressure |
| Internal Finish | High-quality internal casting finish ensuring low flow restriction meeting water flow test requirements |
| Applications | Suitable for on-shore and off-shore fire protection, installation on wet risers, use with permanently charged water supplies |
| Flange Design Features | Bolt hole alignment, O-ring grooves, flat-faced or raised-faced surfaces for leak-free connections |
| Installation & Maintenance | Proper O-ring installation, crisscross bolt tightening, inspection to avoid leakage |
| Certifications | ISO 9001:2015, BSI, LPCB |
Role in Fire Protection Systems
The flange landing valve plays a vital role in fire suppression systems. It differs from threaded landing valves because it uses a flanged connection. This design works best in industrial settings where higher pressures require stronger fittings. Threaded valves are more common inside buildings, especially in hose cabinets, but many safety codes prefer flanged valves for their reliability.
- The flange landing valve gives firefighters a reliable connection point for pressurized water.
- It ensures steady water flow, which helps control fires quickly.
- The valve’s brass construction withstands high pressure and temperature, supporting effective water distribution.
- Its flange design allows secure bolted connections, making maintenance easier.
- Firefighters can connect hoses quickly and operate the valve under stress.
- The valve integrates into wet riser systems with permanently charged water, so water is always available.
- Certified to major fire protection standards, it meets code requirements and passes inspections.
- The flange landing valve works in high-rise buildings, factories, and offshore platforms, showing its versatility.
Flange Landing Valve: How It Prevents Fire System Failures
Reliable Water Flow and Pressure
A fire protection system must deliver water quickly and at the right pressure. The flange landing valve helps achieve this by providing a steady and controlled water flow. Its internal design uses chambers and springs that adjust to changes in water pressure. This automatic adjustment keeps the water supply stable, even if the pressure in the pipes changes during an emergency. Firefighters can rely on the valve to deliver water without sudden drops or spikes in pressure.
Landing valves are often installed on building risers, especially at staircase landings. This placement gives firefighters easy access to water on every floor. In high-rise buildings, safety codes require these valves to ensure that each level has enough water pressure for firefighting. The flange landing valve supports this requirement by maintaining consistent flow and pressure, which is critical for putting out fires quickly.
| Valve Type | Nominal Inlet Pressure (bar) | Regulated Outlet Pressure (bar) | Pressure Classification |
|---|---|---|---|
| Oblique Flange Landing Valve | Up to 15 | N/A | Low Pressure |
| Pressure Reducing Bib Nose 45° | Up to 18 | 4 – 12 | High Pressure |
| Pressure Reducing Oblique Landing | Up to 20 | 5 – 8 | High Pressure |
| Delta Fire Pressure Regulating Valves | Adjustable, factory set at 7 | Typically 7 (adjustable) | High Pressure |
This table shows that the flange landing valve can handle pressures up to 15 bar, making it suitable for many fire protection systems. Some valves can regulate outlet pressure, but the flange landing valve’s robust construction ensures reliable performance in both low and high-pressure environments.
Preventing Leaks and Pressure Loss
Leaks and pressure loss can weaken a fire protection system. The flange landing valve addresses these problems with its strong brass body and precise engineering. The valve’s flanged connection creates a tight seal, which helps prevent water from escaping at the joints. This design reduces the risk of leaks that could lower water pressure and slow down firefighting efforts.
Tip: Regular inspection and maintenance of the flange landing valve help keep the system leak-free and ready for emergencies.
The valve’s internal casting finish also plays a role. A smooth finish inside the valve reduces flow restriction, allowing water to move freely. This feature helps the system maintain the required flow rate, even during high-demand situations. Firefighters can trust that the valve will deliver water efficiently when they need it most.
Quick Emergency Response
Speed matters during a fire emergency. The flange landing valve supports a fast response by giving firefighters a reliable and easy-to-use connection point. Its design allows hoses to be attached quickly, so water can start flowing without delay. The valve’s manual operation lets firefighters control the water supply directly, which is important for managing the situation on each floor.
Pressure gauges on some landing valves help firefighters monitor water pressure in real time. This information allows them to adjust their tactics and ensure they have enough water to fight the fire. The flange landing valve’s sturdy construction and simple operation make it a trusted tool for emergency teams.
Note: The flange landing valve’s role in wet riser systems means water is always available, reducing the time needed to start firefighting operations.
By supporting reliable water flow, preventing leaks, and enabling quick action, the flange landing valve helps keep fire protection systems working when they are needed most.
Flange Landing Valve: Common Breakdowns Addressed and Limitations
Valve Malfunction and Human Error
Valve malfunctions can occur during emergencies, but human error often plays a bigger role in system failures. People sometimes make mistakes when handling the flange landing valve, especially during shift changes or maintenance. Problems can arise when workers do not communicate important information or skip safety steps. For example:
- Workers may forget to tighten flanges properly after maintenance.
- Teams might not share updates about removed or replaced parts during shift handovers.
- Supervisors sometimes leave permits or instructions in places where others cannot find them.
- Crews may start pumps without checking if all valves and parts are in place.
- Poor safety culture and lack of training can lead to unsafe practices.
- Emergency procedures may not be clear, and teams might not practice enough drills.
These mistakes can cause the valve to fail under pressure, leading to leaks or even explosions. Good communication, strong leadership, and regular training help prevent these problems.
Pipe Corrosion and Blockages
Pipes in fire protection systems can corrode or become blocked over time. Corrosion weakens the pipes and can cause leaks. Blockages stop water from flowing to the flange landing valve. Regular inspections and maintenance keep pipes clear and strong. Using high-quality materials, like brass, also helps prevent corrosion. Fire safety teams should check for rust, debris, or buildup in the system to ensure water flows freely during an emergency.
What the Valve Cannot Prevent
The flange landing valve improves fire system reliability, but it cannot stop every problem. It does not prevent issues caused by poor water supply, power outages, or damage to other system parts. Teams must still inspect the whole fire protection system and follow safety procedures. Regular drills and clear communication keep everyone ready for emergencies.
Flange Landing Valve: Best Practices for Reliability
Installation and Maintenance
Proper installation ensures the flange landing valve works as intended during emergencies. Technicians must position the valve so the handwheel faces upward. This placement allows easy operation and prevents awkward handling. Before installation, workers inspect the valve for damage and confirm specifications match system requirements. Clean connecting pipes thoroughly to remove debris that could block water flow. When attaching the valve, tighten bolts evenly in a crisscross pattern. This method protects the flange and maintains a secure seal.
Insulation or cooling may be necessary in extreme environments. These measures prevent freezing or overheating, which can affect valve performance. Some systems require bypasses or meters for monitoring. Technicians should consider these additions based on the importance of the valve and operational needs. Valve packing must be replaced with compatible materials. Workers apply packing evenly and rotate the valve stem to ensure uniform compression.
Tip: Regular inspections and scheduled maintenance keep the valve in top condition. Technicians should check for leaks, corrosion, and proper handwheel movement.
Staff Training
Trained staff play a key role in fire system reliability. Teams must learn correct installation and maintenance procedures for the flange landing valve. Training sessions should cover valve operation, emergency protocols, and safety checks. Workers practice attaching hoses and opening the valve quickly. Supervisors encourage communication and teamwork during drills. Staff review inspection routines and learn how to spot early signs of wear or malfunction.
| Training Focus | Description |
|---|---|
| Valve Operation | Hands-on practice with handwheel |
| Emergency Response | Fast hose connection drills |
| Inspection Skills | Leak and corrosion detection |
| Safety Procedures | Step-by-step checklists |
Fire system reliability depends on strong, well-maintained components.
- These valves withstand high pressure and resist corrosion, supporting safe water delivery.
- Regular inspections and quality parts keep systems ready for emergencies.
- Regulatory checks confirm proper installation and performance.
Investing in reliable valves and routine maintenance protects lives and property.
FAQ
What is the main function of a flange landing valve?
A flange landing valve controls water flow in fire protection systems. It provides firefighters with a reliable connection point for hoses during emergencies.
How often should technicians inspect a flange landing valve?
Experts recommend inspecting the valve every six months. Regular checks help maintain performance and ensure the system stays ready for emergencies.
Can a flange landing valve be used outdoors?
Yes. The brass construction resists corrosion, making it suitable for both indoor and outdoor fire protection installations.
