4-Way Breeching Inlets deliver a steady and strong water supply during high-rise fires. Firefighters depend on these systems to support quick action and protect lives. Unlike a 2 Way Breeching Inlet, the 4-way design allows more hoses to connect, making water delivery more powerful and reliable.
Key Takeaways
- 4-Way Breeching Inlets let firefighters connect four hoses at once, delivering water faster and more reliably to high-rise buildings.
- These inlets provide strong water pressure and multiple water sources, helping firefighters fight fires on different floors quickly and safely.
- Proper installation and regular maintenance of 4-Way Breeching Inlets ensure they work well during emergencies and meet fire safety standards.
4-Way Breeching Inlets in High-Rise Fire Protection
Definition and Core Function of 4-Way Breeching Inlets

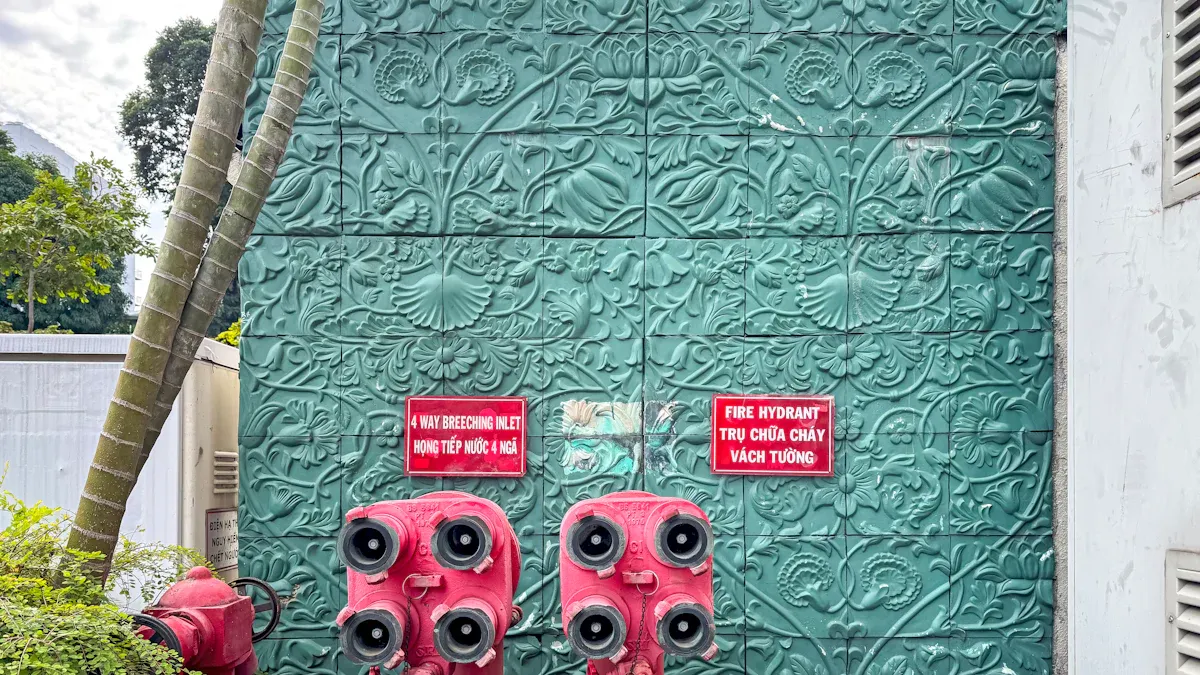

4-Way Breeching Inlets serve as a vital link between external water sources and a building’s internal fire protection system. These devices are installed on dry risers, usually at ground level or near fire brigade access points. Firefighters use them to connect hoses and pump water directly into the building’s riser system. This setup ensures that water reaches upper floors quickly during emergencies.
The technical definition and main features of 4-Way Breeching Inlets, according to international fire safety standards, are summarized in the table below:
| Aspect | Description |
|---|---|
| Application | Installed on dry risers in buildings for firefighting, with inlet at fire brigade access level and outlet at specified points. |
| Standards Compliance | BS 5041 Part 3:1975, BS 336:2010, BS 5154, BS 1563:2011, BS 12163:2011 |
| Body Material | Spheroidal graphite cast iron (ductile iron) |
| Inlet Connections | Four 2 1/2″ male instantaneous connections, each with spring-loaded non-return valve and blanking cap with chain |
| Outlet | Flanged 6″ connection (BS10 Table F or 150mm BS4504 PN16) |
| Pressure Ratings | Normal working pressure: 16 bar; Test pressure: 24 bar |
| Valve Type | Spring-loaded non-return valves |
| Identification | Painted red internally and externally |
The 4-Way Breeching Inlet features four outlets, allowing multiple fire hoses to connect at once. This design enables firefighting teams to attack a fire from different angles and floors. The device uses standardized couplings, such as Storz or instantaneous types, and includes control valves for regulating water flow. Manufacturers like Yuyao World Fire Fighting Equipment Factory ensure these inlets meet strict international standards for safety and reliability.
How 4-Way Breeching Inlets Work During Fire Emergencies
During a high-rise fire, 4-Way Breeching Inlets play a crucial role in water delivery. Their operation follows a clear sequence:
- Firefighters arrive and connect hoses from fire trucks or hydrants to the four inlets.
- The system integrates multiple water sources, such as municipal mains, hydrants, or portable tanks, increasing the total water volume available.
- Each outlet can supply water to different fire zones, with adjustable flow rates for each area.
- Valves inside the breeching inlet manage water pressure, protecting equipment and ensuring steady flow.
- Multiple teams can operate simultaneously, connecting hoses to different outlets and coordinating efforts across several floors.
- If one water source fails, the other connections continue to supply water, providing backup and redundancy.
This process allows firefighters to respond quickly and efficiently, even in complex high-rise environments.
Key Benefits of 4-Way Breeching Inlets in High-Rise Fires
4-Way Breeching Inlets offer several advantages that make them essential for high-rise fire protection:
- Multiple hose connections enable fast and efficient water delivery to upper floors, reducing response times.
- The system provides a reliable and immediate link between fire trucks and the building’s internal water network, overcoming challenges like low water pressure.
- Strategic placement outside the building allows firefighters to connect hoses without entering the structure, saving valuable time.
- The robust design and compliance with international standards ensure durability and safe operation under high pressure.
- Quick water access helps suppress fires rapidly, minimizing damage and supporting safer evacuation for occupants and firefighters.
Tip: Choosing high-quality 4-Way Breeching Inlets from trusted manufacturers like Yuyao World Fire Fighting Equipment Factory ensures long-term reliability and compliance with safety standards.
The technical specifications further highlight their performance:
| Parameter | Specification |
|---|---|
| Normal Working Pressure | 10 bar |
| Test Pressure | 20 bar |
| Inlet Connection Size | 2.5″ Male Instantaneous Connectors (4) |
| Outlet Connection Size | 6″ (150 mm) Flange PN16 |
| Compliance Standards | BS 5041 PART-3:1975, BS 336:2010 |
These features make 4-Way Breeching Inlets a superior choice for high-rise fire protection, ensuring that firefighters have the water supply and flexibility needed to save lives and property.
4-Way Breeching Inlets vs. Other Breeching Inlet Types
Comparison with 2-Way and 3-Way Breeching Inlets
Firefighters use different breeching inlets based on building size and risk. A 2-way breeching inlet allows two hoses to connect at once. A 3-way breeching inlet supports three hoses. These types work well for smaller buildings or low-rise structures. However, high-rise buildings need more water and faster delivery. A 4-way breeching inlet lets four hoses connect at the same time. This design increases water flow and gives firefighters more options during emergencies.
| Type | Number of Hose Connections | Best Use Case |
|---|---|---|
| 2-Way | 2 | Low-rise buildings |
| 3-Way | 3 | Mid-rise buildings |
| 4-Way | 4 | High-rise buildings |
Why 4-Way Breeching Inlets Are Superior for High-Rise Applications
High-rise fires demand quick action and a strong water supply. 4-Way Breeching Inlets provide more connection points, which means more water reaches upper floors faster. Firefighters can split their teams and attack the fire from different locations. This flexibility saves time and helps protect people and property. Yuyao World Fire Fighting Equipment Factory produces 4-Way Breeching Inlets that meet strict safety standards, making them a trusted choice for high-rise fire protection.
Note: More hose connections mean better water flow and faster response during emergencies.
Installation and Maintenance Considerations for 4-Way Breeching Inlets
Proper installation ensures the system works when needed. Fire safety codes recommend these steps:
- Install the inlet 18 to 36 inches above the finished ground for easy access.
- Make sure all connection points are clear and reachable.
- Attach the inlet securely to the building exterior.
- Keep the area around the inlet free from obstructions like debris or parked cars.
- Check local fire codes and consult with the fire department during planning.
- Use licensed fire protection professionals for installation.
- Ensure all hose connections are tight and leak-free.
- Adjust the height based on building type to keep the inlet accessible.
Regular checks and maintenance keep the system ready for emergencies.
4-Way Breeching Inlets improve water supply and firefighting speed in high-rise buildings.
Key points from fire safety audits include:
- Proper placement at building bases ensures fast firefighter access.
- Reliable water pressure supports upper floors.
- These inlets meet strict safety standards and help buildings comply with fire codes.
FAQ
What is the main purpose of a 4-Way Breeching Inlet?
A 4-Way Breeching Inlet allows firefighters to connect four hoses, delivering water quickly to a building’s fire protection system during emergencies.
How often should building managers inspect 4-Way Breeching Inlets?
Experts recommend monthly visual checks and annual professional inspections. Regular maintenance ensures the system works properly during a fire emergency.
Can 4-Way Breeching Inlets fit all hose types?
Most 4-Way Breeching Inlets use standardized connectors. Firefighters can attach hoses with compatible couplings, such as Storz or instantaneous types.
Post time: Jul-18-2025
